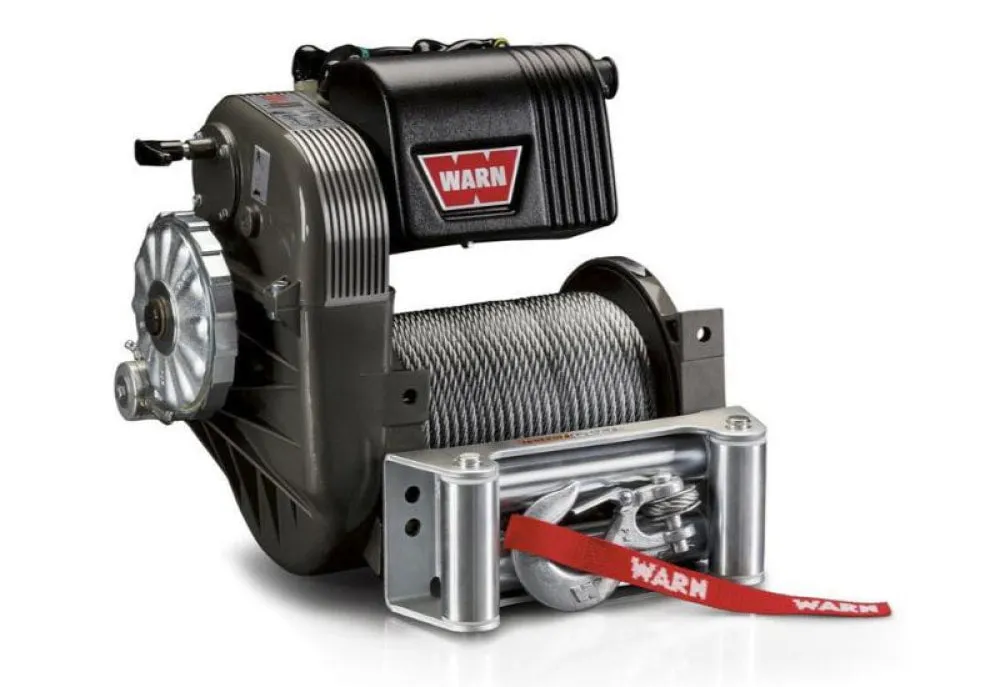

M8274 High Mount 12v Winch with Steel Cable by Warn
Fastest line speed. Longest synthetic rope. Legendary performance.
One of the fastest winches on the market, the Warn M8274 has a reputation that truly precedes it. This is the latest generation M8274, which means Warn took their most iconic winch and added more performance and more features. It is still the fastest of any WARN winch and has the longest steel cable length (38m/125ft), but now with even more power courtesy of a 6hp motor, a 10,000 lb. capacity, contactor control, and aircraft-grade steel winch cable. The legend continues.
The M8274 maintains all the things buyers love about the product: speed, durability, and its famous shape, but they’ve added more performance and more features. It comes with 38 meters of 9.5mm diameter aircraft-grade steel cable
- Rugged spur-gear drive train and unique upright design
- Automatic disc braking system delivers smooth operation with superior heat dissipation
- Roller fairlead, remote control, free spool clutch, and battery cables are included.

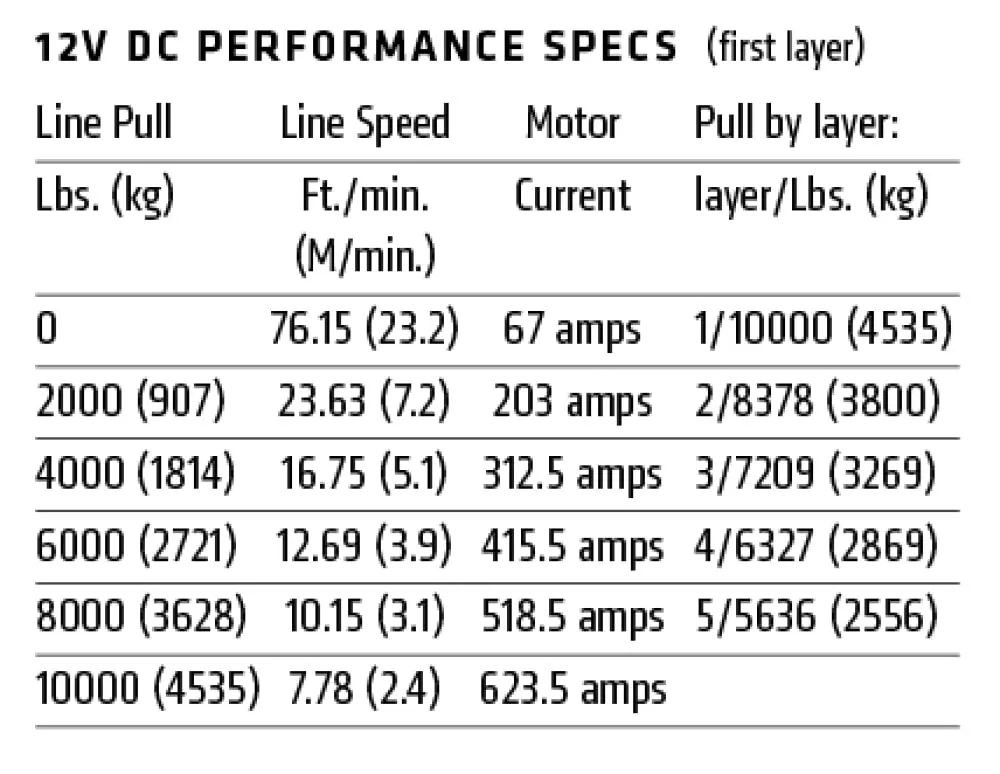

Warn M8274 12V Winch Specifications
| Part Number: M8274-70-106170 |
| Rated Line Pull: 10,000 lbs. (4536 kg) single-line |
| Motor: 12V DC, 6HP Series Wound |
| Electrical Control: Contactor |
| Remote control: Remote switch, 12’ (3.7m) lead |
| Geartrain: 3-stage Spur Gear |
| Gear ratio: 134:1 |
| Clutch (freespooling): Sliding motor pinion gear |
| Brake: Automatic disc type |

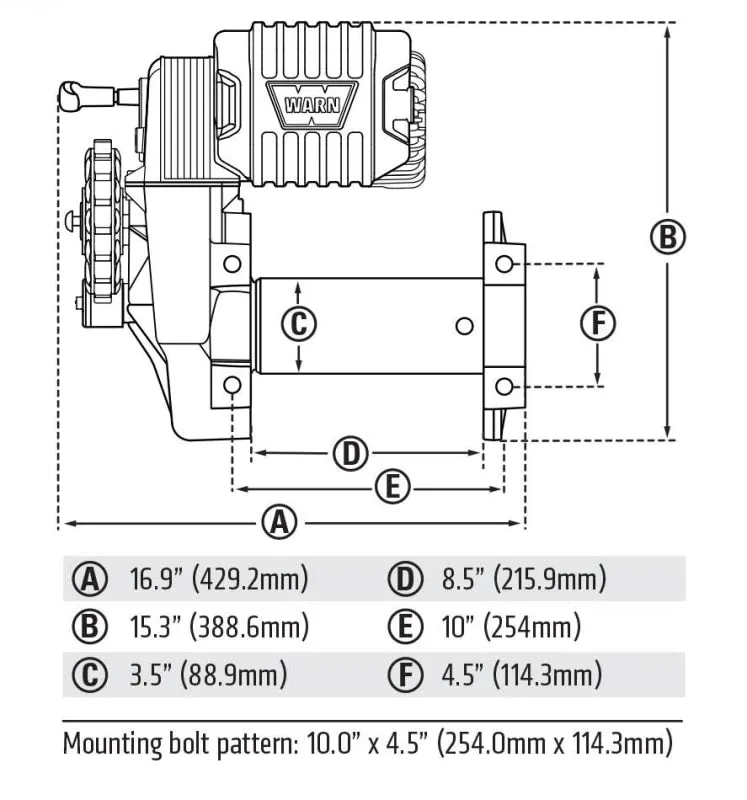

| Drum Diameter/Length: 3.5”/8.5” (9cm/22cm) |
| Wire rope: 9.5mm x 38M (3/8″ x 125′) |
| Fairlead: Roller Fairlead |
| Recommended battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72 in. (1.83m) |
| Finish: Powder coat with clear coat |
| Weight: 110lb (50kg) |
| Warranty: Limited Lifetime Mechanical Warranty with 7 Year Electrical Warranty) |
